Brand Name : GCL
Model Number : Gsurface-V
Certification : EMC/CE/ROHS/CCC/FCC/BIS
Place of Origin : Guangdong, China
MOQ : Min. order: 20
Price : Negotiable
Delivery Time : 15-20Days
Packaging Details : Single package size:101X116X13 cm
Application : Outdoor
Type : LED
Color : Full color
Panel Size : 960*960 mm
Supplier Type : Original manufacturer, ODM, OEM
use : advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Pixel Pitch : 6mm,8mm,10mm
Brightness : 6000-6500nits
IP Rating : IP65
Resolution : 3840Hz
View Angle(H/V) : H140°,V140°
Module size : 320*160mm
After-sales Service Provided : 3 Years
Cabinet Weight : 35KG
Maintenance : Rear Service
GCL Waterproof Full Color P6 P8 P10 mm Giant Stadium Panel Video Wall Outdoor LED Display Screen
Product features
High Protection Performance
High quality cotton on top to reduce impact
Polymer soft cover to prevent collision injuries
Easy Installation
Two fast locks on both sides and the top, easy installation;
Multiple Usages
The cabinet without the protection pad and the supporting leg
Can be used in either outdoor rental use or fixes installation
Support frame can be adjust the angle
Parameters of Gsport Series:
Product | P6 | P8 | P10 |
Pitch(mm) | 6 | 8 | 10 |
Density(pixels/m2) | 27777 | 15625 | 1000 |
LED Type | SMD2727 | ||
Brightness(nits) | 6000 | 6000 | 6500 |
Cabinet Size(mm) | Customized | ||
Cabinet Material | Magnesium Diecasting | ||
Cabinet Weight | 35kg/m2 | ||
Protection Level | IP65 | ||
Cabinet Maintenance | Rear Service | ||
Max Power Consumption | 750w/㎡ | 800w/㎡ | 720w/㎡ |
Average Power Consumption | 250w/㎡ | 300w/㎡ | 240w/㎡ |
Refresh Rate | 2880-3840Hz | ||
Grey Scale | 16 bit | ||
Viewing Angle | H140o,V140o | ||
Voltage | AC100~240V(50-63Hz) | ||
Working Humidity | 10% -- 90%RH | ||
Color Temperature | 6500-9500K | ||
Certificationa | EMC/CE/ROHS/CCC/FCC/ISO |
![]() |

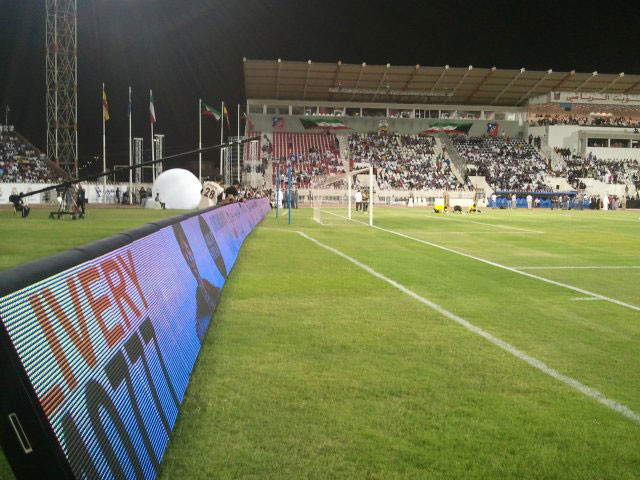

Waterproof Outdoor LED Display Screen Video Wall Full Color P6 P8 P10 Giant Stadium Panel Images |
